XT66 Tilt & Turn Window
The XT66 Tilt & Turn Window System has been specifically developed to meet the performance and energy efficiency requirements in commercial and Irish school buildings. It is an eco-friendly, fully certified window system that emphasises sustainability, with aluminium profiles containing a minimum of 50% recycled content. With a profile depth of 66mm, the system supports both internal and external glazing, accommodating units from 28mm to 48mm, and offers a variety of sash styles for design flexibility.
The XT66 Tilt & Turn Window System has been specifically developed to meet the performance and energy efficiency requirements in commercial and Irish school buildings. It is an eco-friendly, fully certified window system that emphasises sustainability, with aluminium profiles containing a minimum of 50% recycled content. With a profile depth of 66mm, the system supports both internal and external glazing, accommodating units from 28mm to 48mm, and offers a variety of sash styles for design flexibility.
Internally glazed the XT66 School Tilt & Turn offers large open-in vent options up to 3.0 m in height. Designed to meet the performance and energy efficiency requirements of Irish schools the tilt & turn window is fully certified to CEN Solutions Gold Standard and is Secured by Design certified. It is a suitable choice for all applications and is an ideal solution for school buildings.
- Opening options: Open-out, Open-in, Tilt only, Tilt & Turn, Parallel opening
- Internally beaded
- Can accommodate units up to 48 mm in thickness
- Advanced patented thermal technology
- CEN Solution Gold Quality Standard Certification
- Up to 3.0 m high opening sash
- Standard RAL colours available
- Offers theCENsolutions Gold Standard Certification
- Qualicoat' certified paint - Qualicoat Certificate
- Powder Coating available - Syntha Pulvin, Axalta,Interpon,Tiger, IGP
- Anodised finish available
- Project specific guarantees on request
- Secured by Design security certified
- Decoral' finishes - Please refer to AMS Technical Department as to the suitability of finish for exterior application.
Weather
- Tested to BS 6375 – 1
- Air tightness = Class 4 (600 Pa)
- Water tightness = Class AE1050 (1050 Pa)
- Wind resistance = Class E2400A (2400 Pa)
Security
- Security tested to PAS 24: 2016

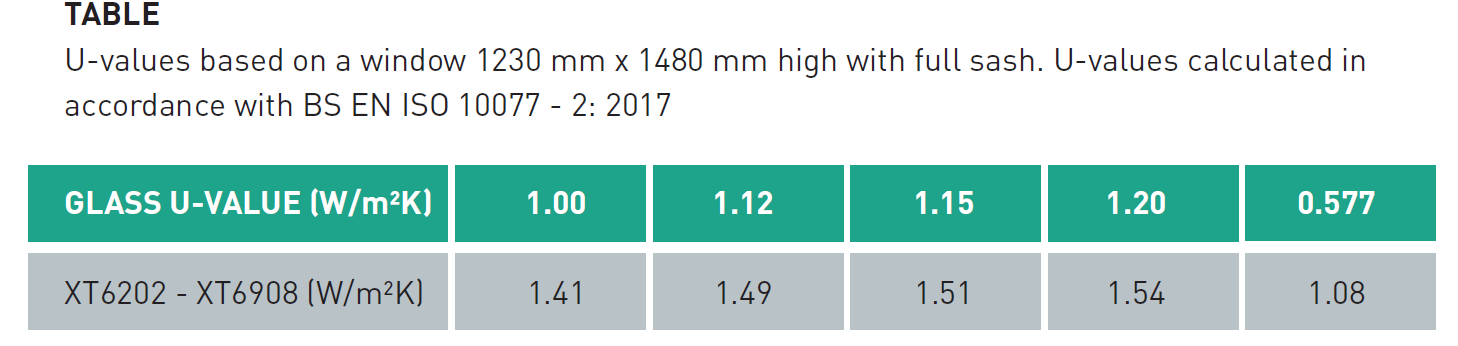

Thermal
AMS see the many positive benefits in contributing to corportate and social responsibility. Our company is built on the premise of being responsibe through the supply of aluminium products which is 100% recyclable.
